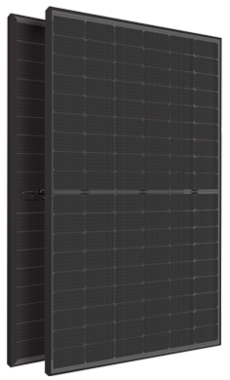

LYNX

The Technology of the Future

The LYNX N Type (TOPCon) series is considered the technology of the future. TOPCon solar cells, due to the way they are manufactured, eliminate the losses of the energy produced. In addition, thanks to their property of having two sides (bifacial panels), the collection and production of electricity takes place on both surfaces, front and back. N-type solar panels are generally more efficient at producing electricity than P-type solar panels. This is because they have a lower electron recombination rate, meaning there are fewer losses due to the breakdown of excess negative charge. N-type solar panels also have a more stable output voltage, which helps increase the efficiency of the entire solar power system. However, P-type solar panels are used much more often, as they are less expensive to manufacture compared to N-type solar panels. At the same time, they offer a perfect aesthetic result with high efficiency and durability.

  • Bifacial N type (TOPCon) Monocrystalline Double Glass Frame
  • Its low temperature coefficient contributes to a small decrease in its efficiency with the increase in temperature, a fact particularly important for the intense Greek summer.
  • Protection from the PID phenomenon (anti-PID protection), from the LID phenomenon (anti-LID protection) and from hot-spots protection.
  • Certification for resistance to heavy snowfall (5400Pa) and strong winds (2400Pa).
Download the Datasheet

Why should I choose a Photovoltaic LYNX Panel?

Higher Yield per surface area
Low Pmax Temperature Coefficient
Zero LID
Minimum Power Loss
30-year Limited Product Warranty
Premium Design

Technical Characteristics, Certifications & Warranties

Product Warranty:
30 years
Power Performance Warranty:
30 years
Cell Type:
Monocrystalline
Number Of Cells:
2x54
Glass Type:
Glass-Glass
Backsheet Colour:
Black
Frame Colour:
Anodized Aluminum Alloy
Capacity:
210.0-220.2 W/m2
Pmax Temperature Coefficient:
-0.29 %/°C
Efficiency:
21.00-22.00 %
Connector Type:
MC4 compatible
Cable Length:
350mm - can be extended
Standard Tests:
IEC 61215, IEC 61730
Factory Quality Tests:
ISO 9001 : 2015, ISO 14001 : 2015
Wind and snow - Loads Testing:
Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
Insurance:
Third party liability insurance provided by Liberty Mutual
Certifications:
Conformity to CE, PV CYCLE - Fire Safety Class C, according to UL790
Power Tolerance:
Guaranteed +0/ +5W (STC condition)
Warranties:
  • 30-year limited product warranty
  • 30-year transferable linear power output warranty
  • 15-year manufacturer warranty on 95.0% of the nominal performance

Linear Performance Warranty

First Year Output

99%

Decline 2-30 years

≤ 0.4 %

Output 30 years

87.4%

Key features

Height (mm)

1723

Width (mm)

1133

Depth (mm)

30

Weight (Kg)

24.7
