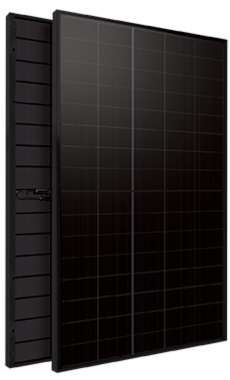

LION

Next Generation of Photovoltaic Panels

The LION Heterojunction (HJT) series is a revolutionary technology. It guarantees high efficiency and low efficiency drop of the photovoltaic module over time. They combine two different technologies in one cell, a crystalline cellular silicon sandwiched between two layers of "thin film" amorphous silicon. Used together, these technologies allow for increased panel efficiency and more energy collection compared to conventional panels. Finally, the losses caused by various obstacles are significantly reduced, achieving increased performance in shading conditions. It is an ideal solution for end users who want a quality and reliable product but also a quick payback on their investment.

  • Bifacial – Double Sided HJT Monocrystalline Double Glass Frame.
  • Excellent performance in shadow and low light conditions.
  • Its low temperature coefficient contributes to a small decrease in its efficiency with the increase in temperature, a fact particularly important for the intense Greek summer.
  • Protection from the PID phenomenon (anti-PID protection), from the LID phenomenon (anti-LID protection) and from hot-spots protection.
  • Certification for resistance to heavy snowfall (5400Pa) and strong winds (2400Pa).
Download the Datasheet

Why should I choose a Photovoltaic LION Panel?

Higher Yield per surface area
Low Pmax Temperature Coefficient
Higher Light Conversion
Guaranteed Mechanical Resistance
30-year Limited Product Warranty
Bifacial

Technical Characteristics, Certifications & Warranties

Product Warranty:
30 years
Power Performance Warranty:
30 years
Cell Type:
Monocrystalline
Number Of Cells:
2x40
Glass Type:
Glass-Glass
Backsheet Colour:
Transparent
Frame Colour:
Anodized Aluminum Alloy
Capacity:
212.0-224.0 W/m2
Pmax Temperature Coefficient:
-0.24 %/°C
Efficiency:
21.20-22.40 %
Connector Type:
MC4 Evo2 or MC4 compatible
Cable Length:
1200mm - can be extended
Standard Tests:
IEC 61215, IEC 61730
Factory Quality Tests:
ISO 9001 : 2015, ISO 14001 : 2015
Wind and snow - Loads Testing:
Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
Insurance:
Third party liability insurance provided by Liberty Mutual
Certifications:
Conformity to CE, PV CYCLE - Fire Safety Class C, according to UL790
Power Tolerance:
Guaranteed +0/ +5W (STC condition)
Warranties:
  • 30-year limited product warranty
  • 30-year transferable linear power output warranty
  • 15-year manufacturer warranty on 95.0% of the nominal performance

Linear Performance Warranty

First Year Output

98.5%

Decline 2-30 years

≤ 0.25 %

Output 30 years

91.25%

Key features

Height (mm)

1748

Width (mm)

1096

Depth (mm)

30

Weight (Kg)

23
